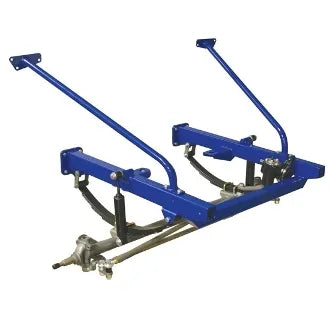

Gasser 1962-67 Chevy II Nova Front End Bolt-On Gasser Axle Suspension K

Gasser 1962-67 Chevy II Nova Front End Bolt-On Gasser Axle Suspension K

Regular price $3,000.00 CAD
Regular price Sale price $3,000.00 CAD
Sale Sold out



No cutting or grinding is necessary with these Gasser subframes for your 1962-67 Chevy II Nova. These direct, bolt-in front ends use all the same stock holes that held the original IFS subframe, which includes sturdy upper firewall support tubes from the subframe rails. This adds strength to the subframe structure and supports the 8-bolts that hold the lower rails to the “chassis”. The firewall support tubes bolt directly to the firewall using existing factory holes. These leaf-spring suspensions include everything you'll need to install it into a stock Chevy II Nova chassis in a weekend.

LOCAL PICKUP ONLY

  • Allows you to easily turn your 1962-67 Chevy II into a Gasser
  • Subframe and firewall supports bolt to factory mounting points
  • Comes with frame mounts installed for small block, big block, and LS series engines
  • Parallel leaf spring assembly bolts to subframe and supports tube axle
  • Springs are heavy enough to support big block applications
  • Equipped with Vega steering box and cross-style steering
  • Urethane bushings to withstand the punishment of today's streets while providing a comfortable ride
  • Kit includes subframe assembly, leaf springs, axle,  new Vega steering box, steering arms, tie rod and drag link
  • 56-1/2" track width with Speedway  and a 48" axle
  • Brake kit and other accessories available separately
  • Welding of spring pads to axle will be required
  • Item #: 9011
